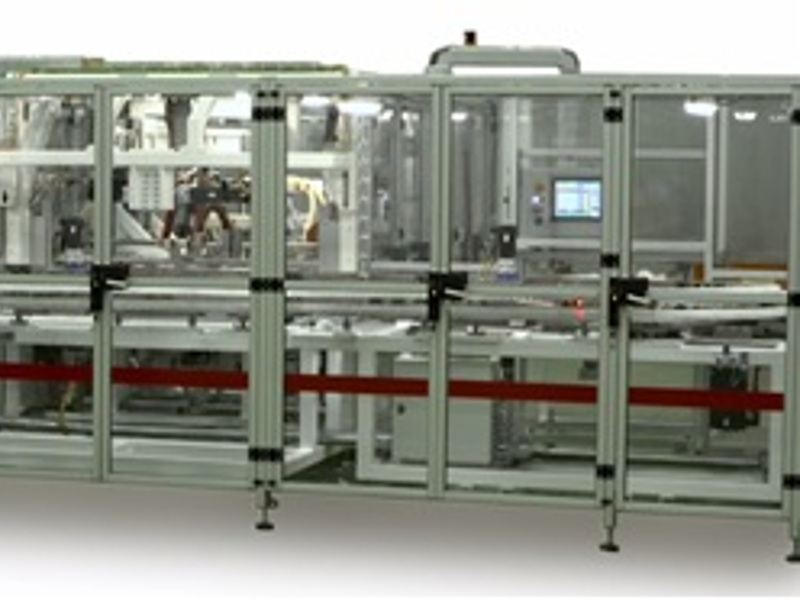

SB50-D70 Black Series B10

Stacker with 2 baggers for 1000 ppm infeed speed (50 bags/min)

Basic Info

  • TECHNOLOGY: Stacking & Bagging
  • INDUSTRY: Tissue & Hygiene
  • SEGMENT: Baby Diapers

Detailed Info

Machine depth (mm)9800
Machine height (mm)2570
Machine length (mm)11500
Machine weight (kg)20000
Max efficiency (%)95
Operating modeContinuous
Product changeover30 min
Size changeover10 min
Max waste (%)1
More Information
Other infoThe SB50-D70 Black Series B10 has a full servo integrated packaging system capable to count, stack, compress and bag Baby disposable diapers into pre-made bags up to 50 cycles cycles per minute with a input speed at 800 ppm, predisposed to be upgraded at 70 Cycles/min (each bagger) input speed at 1000ppm, easier format change and maintenance concepts- MACHINE PERFORMANCE Production speed*: Input (stacker) Max.(*): 800 -1000ppm - 385- 500m/min Output (each bagger) Max. : 50 - 70bags/min - product width up to 125mm Max. : 40 - 50bags/min - product width up to 175mm Number of products per row: Min. : 8 with ¾ chain pitch (up to 15mm product thickness) Max. : 60 single row- 120 double row- Min. : 7 with 1 chain pitch (up to 20mm product thickness) Max. : 50 single row- 100 double row- *Note: Whichever comes first
Regulatory requirements
Other RegulationsEC Declaration of Conformity (Type II1A 2006/42/EC)  CE certificate
Packaging features
Packaging materialpolyethylene film
Packaging typebag
Product range
Max product length (mm)280
Min product length (mm)160
Max product width (mm)140
Min product width (mm)90
Product features
Product typebaby disposable diaper and pants products
Value proposition
Value propositionScalability
